2500 E

True Hybrid
Robust and powerful
Short transport length
Easy and intuitive controls

2500 E, 2500 EB and 2500 EBD are identical apart from their power sources. Standard features include hydraulic stabilizers with interlocks, basket rotation and proportional controls with dual controls to ground and basket. Design features include a basket mounting that forms a "fly" boom mounted to the top boom section and gives increased outreach over obstacles. The specially designed steel booms made from high and broad profiles allow greater outreach whilst maintaining a high degree of stability and rigidity. Being shorter in travel length than most machines of this type, the 2500 E-series allows improved manoeuvrability.

2500 E is main powered 230 V/16 A and is especially suited, where continuous or extended operation is required.

2500 EB is powered by a heavy duty 24 V battery pack with built-in charger capable of charging the batteries whilst the platform is in use. 2500 EB is especially suited for jobs, without mains access.

Contact form

In order to respond to your request we need your contact information. Please complete the fields below.

Thank you for your request!
We appreciate you contacting us about our ommelifts. One of our colleagues will get back to you shortly. Have a great day!

Name: *

Surname: *

Company: *

Phone: *

E-mail: *

Address: *

City: *

Zip code: *

Website:

Message: *

Consent for storing submitted data *

Yes, I give permission to store and process my data
No, I don't give consent to storing my data

Type

2500 E

2500 EB

2500 EBD Hybrid

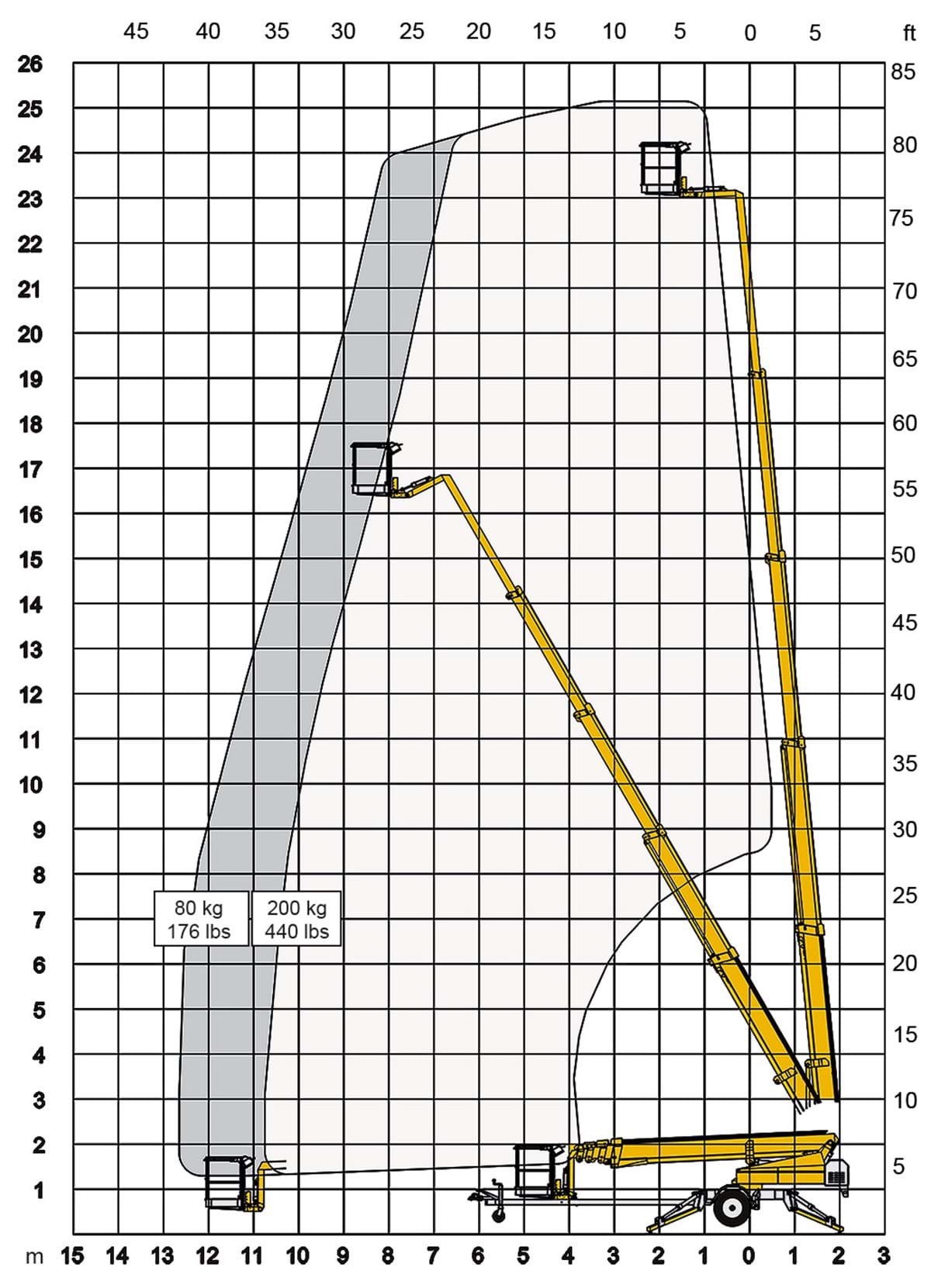

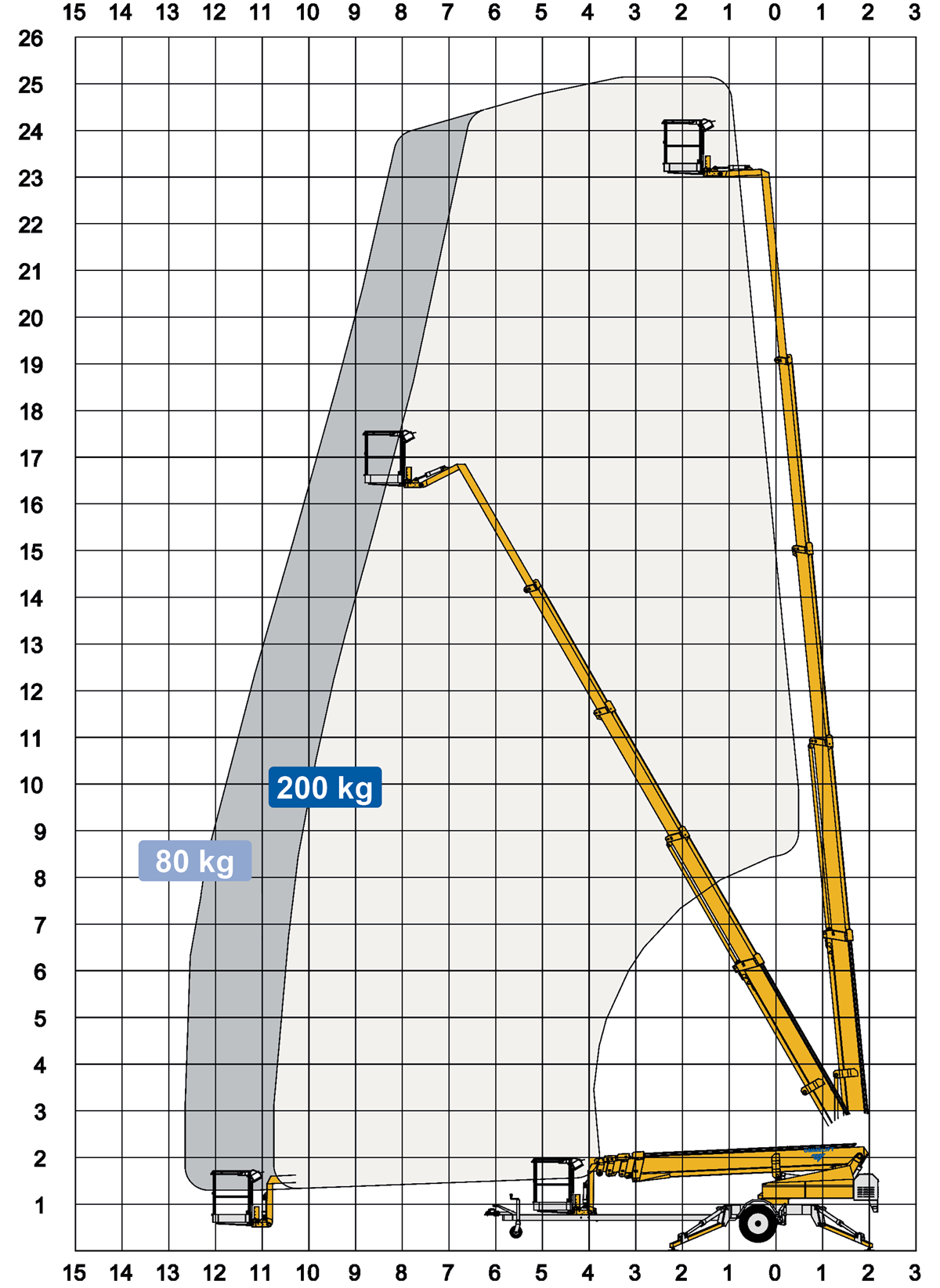

Max. working height

25.1 m -

25.1 m 82’3’’

Max. outreach

12.6 m -

12.6 m 41’3’’

Max. basket load

200 kg -

200 kg 440 lbs

Basket size

1.25 x 0.8 x 1.1 m -

1.25 x 0.8 x 1.1 m 4’1” x 2’6” x 3’8”

Basket rotation ±

41° -

41° 41°

Turret rotation ±

355° -

355° 355°

Travelling length

8.41 m -

8.41 m 27‘6“

Travelling height

2.11 m -

2.11 m 6’9”

Travelling width

1.71 m -

1.71 m 5’6”

Operational width

4.25 m -

4.25 m 13’9’’

Power supply

230 V / 16 A -

- 110 V

Battery

- -

24 V / 200 Ah / 5h 24 V / 200 Ah / 5h

Charger

- -

24 V / 30 A 24 V / 25 A

Diesel engine

- -

14 kW / 18.8 hk 14 kW / 18.8 hk

Generator

- -

24 V / 22 A 24 V / 22 A

Total weight

3000 kg -

3060 kg 6747 lbs

3180 kg 7011 lbs

Metric US

Brochure download

Download

Self-Drive
Hydraulic Engagement of Traction Rollers
Heavy-duty Front Wheel
Safety indicators
Up and Over Angle Boom

The up and over angle boom (length 2.00 m (ft 6’6”) including basket) enhances versatility when working up and over roof edges or other difficult to reach areas.
Flush Basket Mount

No bulky fixture underneath the basket which can inflict damage on buildings/rooftops or interior decoration
Telescopic Sections on Rollers

No slide pad friction in telescopic movements. Same operation speed with full basket load in all positions. Brushes on entrances prevent sprigs, twigs or other fragments to enter sections
Large and Grease Free Steel Boom Sections

Grease-free sections minimize build-up of sawdust, dirt or similar between sections giving increased reliability and reduced maintenance
Telescopic Boom Cylinder Situated Underneath Main Boom

The telescopic cylinder is protected under the boom and not exposed on top hence not subject to impact of falling objects and damage from collision
Tool Trays in Basket
Power Outlet in Basket
Hatch for easy cleaning

Battery/Diesel True Hybrid Power

The EBD-version is optimal power source utilization. The batteries are automatically re-charged when the engine is on. Engine stop accommodates automatic change from engine to battery power and vice versa. Furthermore, continuous recharge of the battery pack is also possible with a on-board charger during lift operation. The charger does not disconnect when the lift is in use.
Wireless Drive and Auto-Levelling from ground or basket

O4a
Double Battery Capacity

O6 2 x (4 x 6V) 400Ah/5h
Double Charger System with Boost Effect (230V only)

O10 When connected to 230V mains, the 2-charger system provides unlimited lift operation and re-charge of battery pack simultaneously.

Boost effect: boosts output and gives powerful assistance to lift operation and battery re-charge.

A second charger can be fitted on most existing units.
Petrol engine with oil pump

O12(e,f) The lift can be equipped with a petrol engine for alternative continuous operation. On specific engine types start and stop of the engine can also take place from the basket.
Diesel engine with oil pump

O12(g,h) The lift can be equipped with a diesel engine for alternative continuous operation. On specific engine types start and stop of the engine can also take place from the basket.
Work Light in Basket

O16
Special Colour RAL

O22 For an additional price the lift can according to agreement be painted in other RAL-colours.
Holder for nose wheel

O24 The lift is supplied with a heavy nose wheel to be used during operation with the propulsion. With the holder there is a fixed place for the nose wheel when the lift is being pulled after the vehicle.
Plates for stabilizers

O29 For lift set up on soft ground OMMELIFT offers 4 pcs. supporting rubber plates. Holders for placing the plates on the lift follow together with the plates. The dimensions of the plates are 400x400 mm
Flashing Beacons on Stabilizers

O39 The lift can be supplied with flash lights on the four stabilizers. If further warning is requested, a flash light can also be mounted on the rear edge of the telescopic boom.
Battery discharge indicator and time counter on electric motor

O57 Battery discharge indicator and hour meter on elec. motor
