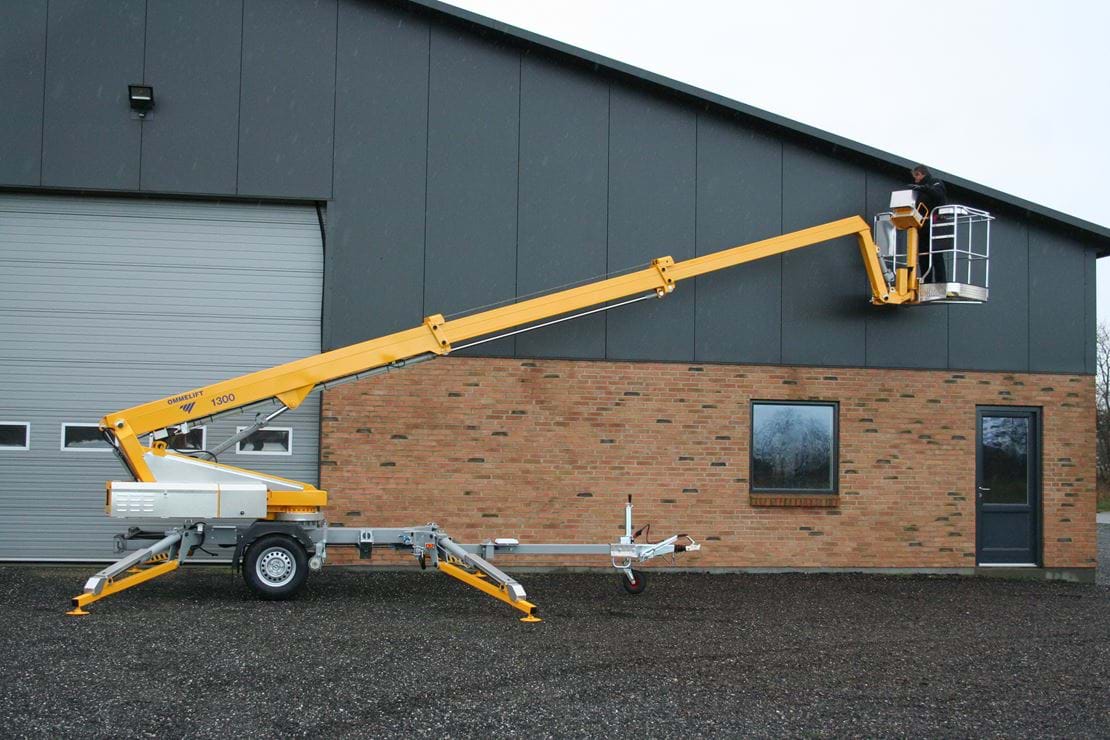

1300 E

Robust and powerful
Compact dimensions
Basket rotation ±50°

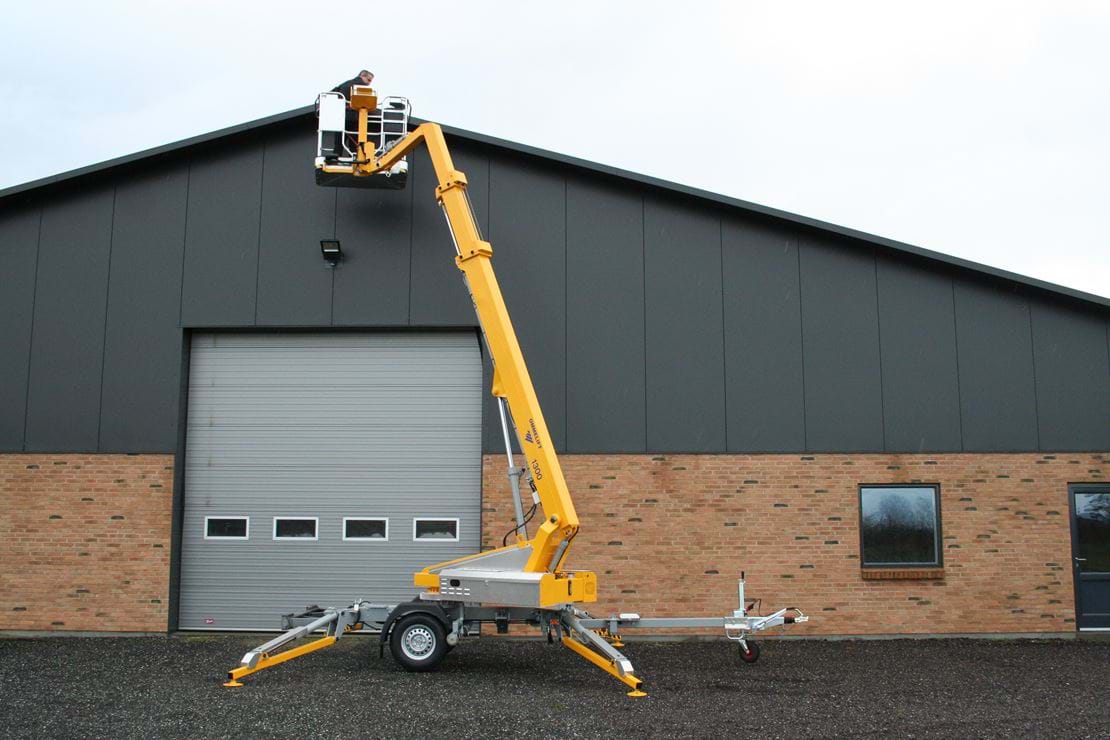

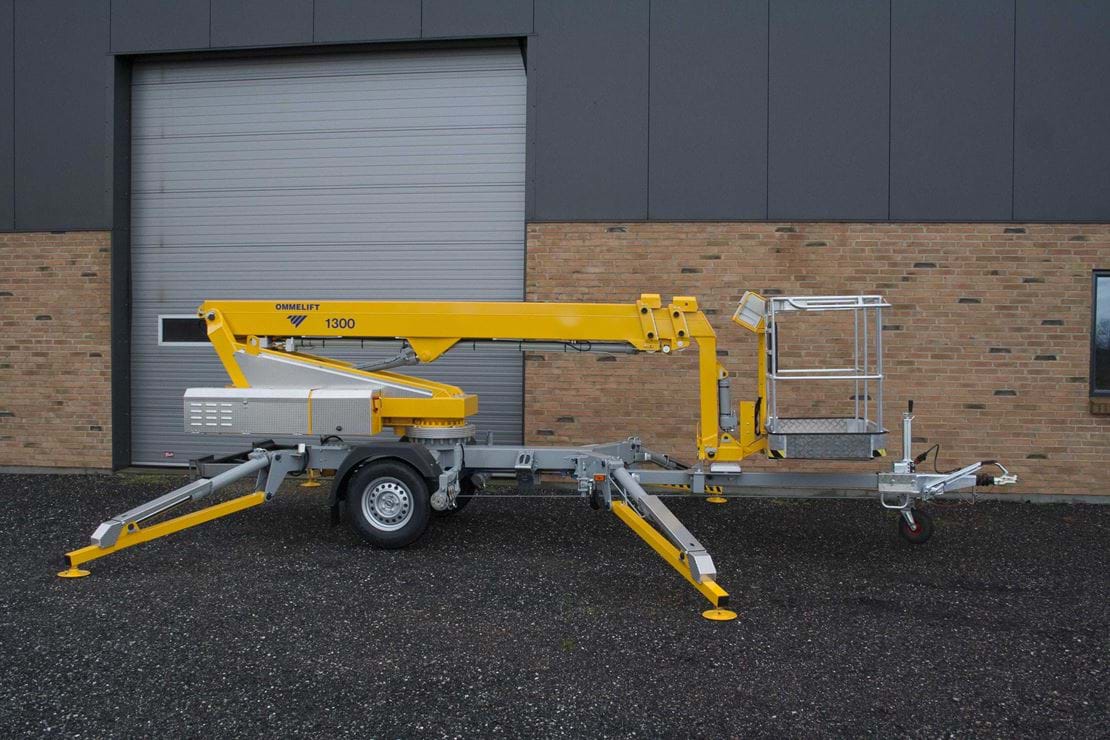

1300E and 1300EB are identical apart from their power sources. Standard features include hydraulic stabilizers and 2-step dual controls to ground and basket. Design features include a basket mounting that forms a "fly" boom mounted to the top boom section and gives increased outreach over roof edges or other obstacles. The specially designed steel booms made from high and broad profiles allow a great outreach with an exceptional degree of stability and rigidity.

1300 E is mains powered 230 V and is especially suited, where continuous or extended operation is required.

1300 EB is powered by a heavy duty (24V/139Ah/5h) battery pack with built in charger capable of charging the batteries whilst the platform is in use. Type 1300EB is especially suited for jobs, without mains access. As an option the lift can be delivered with increased battery capacity 24V/200Ah/5h.

Contact form

In order to respond to your request we need your contact information. Please complete the fields below.

Thank you for your request!
We appreciate you contacting us about our ommelifts. One of our colleagues will get back to you shortly. Have a great day!

Name: *

Surname: *

Company: *

Phone: *

E-mail: *

Address: *

City: *

Zip code: *

Website:

Message: *

Consent for storing submitted data *

Yes, I give permission to store and process my data
No, I don't give consent to storing my data

Type

1300 E

1300 EB

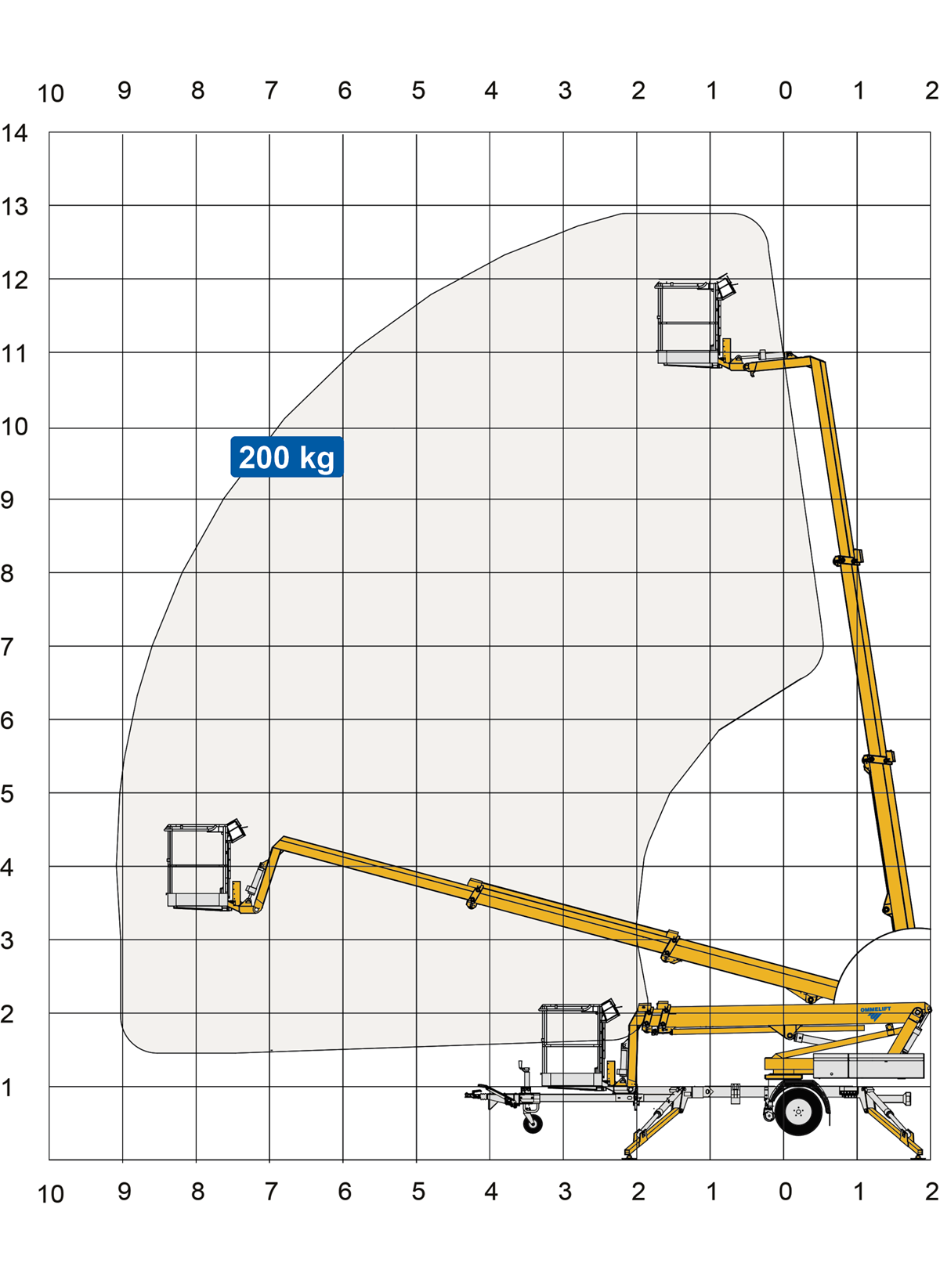

Max. working height

12.8 m -

12.8 m 42'0''

Max. outreach

9.00 m -

9.00 m 35'4''

Max. basket load

200 kg -

200 kg 440 lbs

Basket size

1.25 x 0.8 x 1.1 m -

1.25 x 0.8 x 1.1 m 4’1” x 2’6” x 3’8”

Basket rotation ±

50° -

50° 50°

Turret rotation ±

355° -

355° 355°

Travelling length

6.27 m -

6.27 m 23'9''

Travelling height

1.93 m -

1.93 m 6'2''

Travelling width

1.60 m -

1.60 m 5'2''

Operational width

4.12 m -

4.12 m 13'5''

Power supply

230 V / 16 A -

- 110 V

Battery

- -

24 V / 120 Ah / 5h 24 V / 120 Ah / 5h

Charger

- -

24 V / 15 A 24 V / 15 A

Total weight

1650 kg -

1750 kg 3859 lbs

Metric US

Brochure download

Download

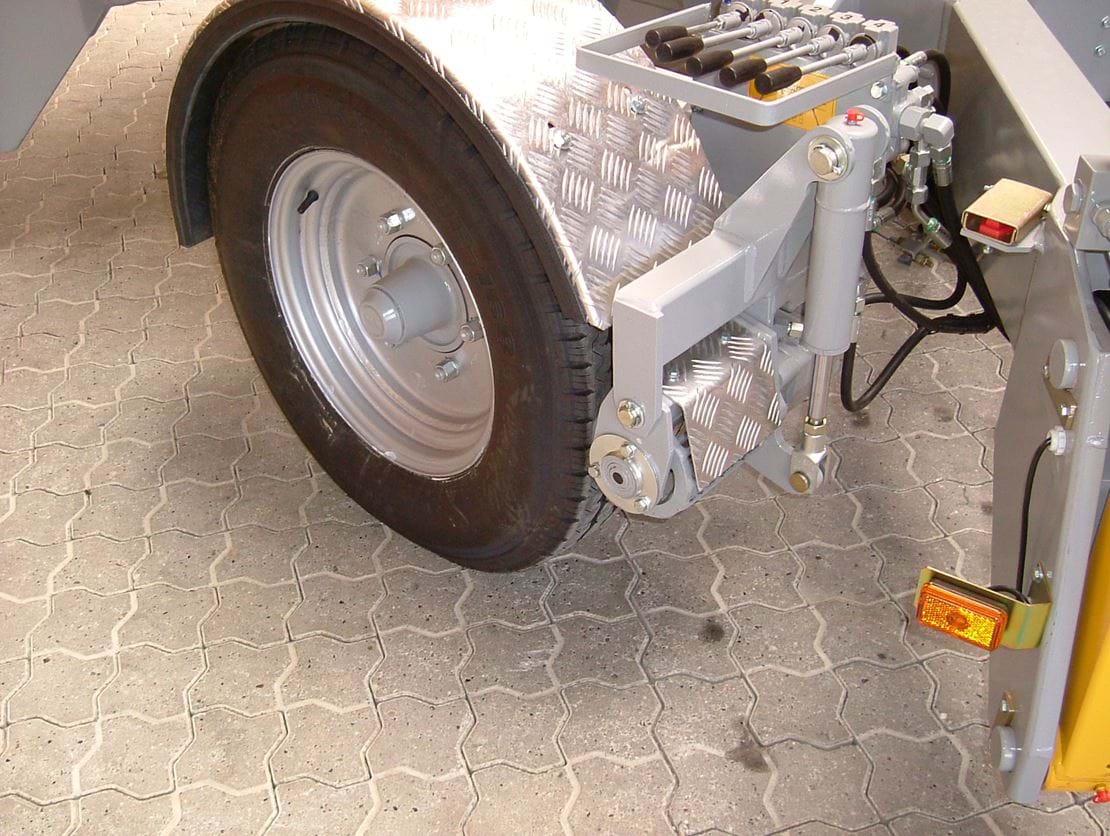

Hydraulic Engagement of Traction Rollers

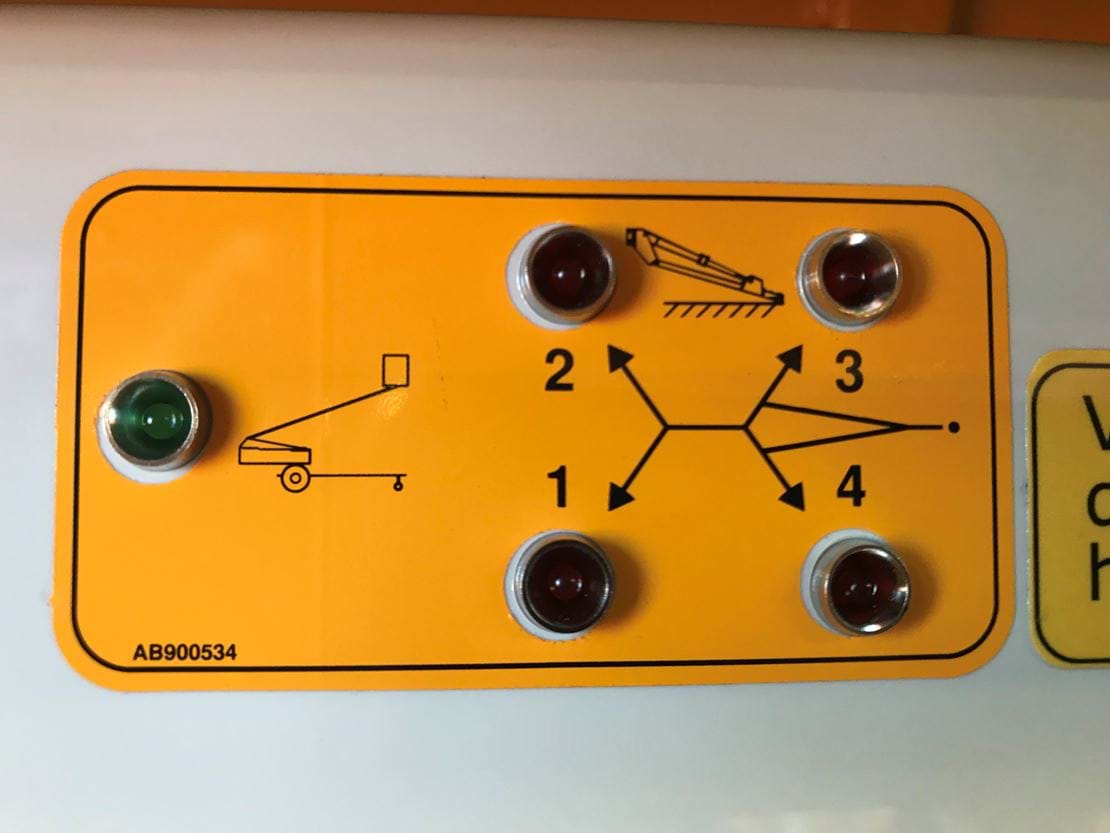

Safety indicators

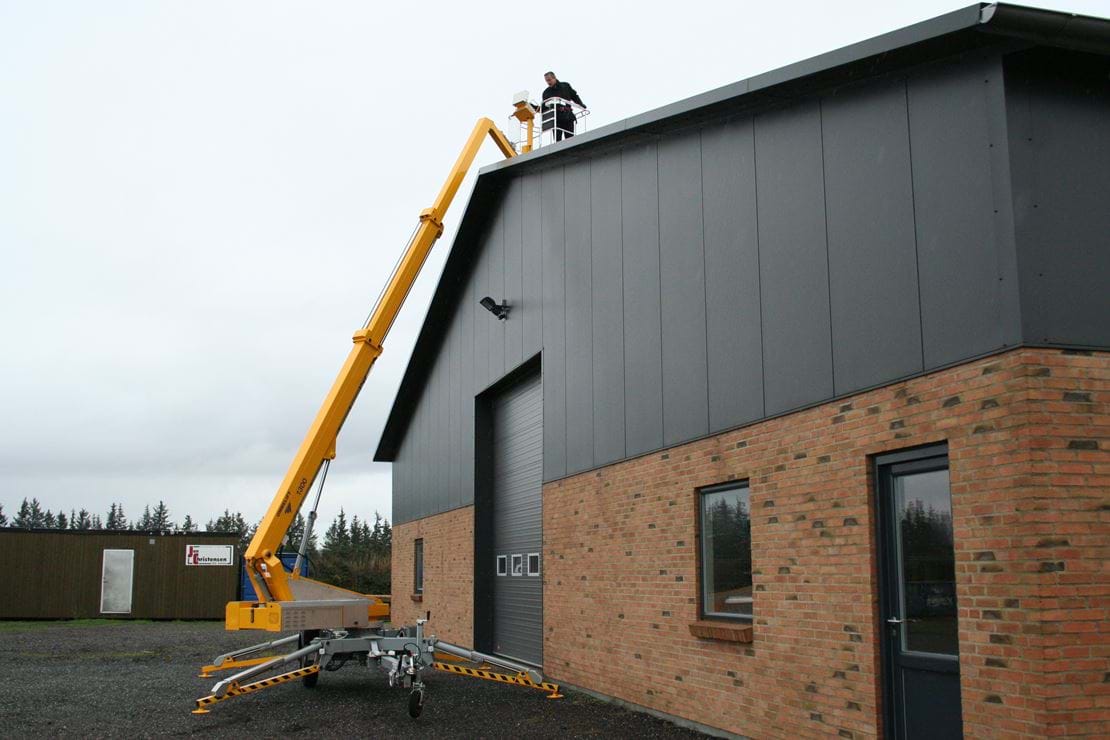

Up and Over Angle Boom

The up and over angle boom (length 2.00 m (ft 6’6”) including basket) enhances versatility when working up and over roof edges or other difficult to reach areas.
Flush Basket Mount

No bulky fixture underneath the basket which can inflict damage on buildings/rooftops or interior decoration
Telescopic Sections on Rollers

No slide pad friction in telescopic movements. Same operation speed with full basket load in all positions. Brushes on entrances prevent sprigs, twigs or other fragments to enter sections
Large and Grease Free Steel Boom Sections

Grease-free sections minimize build-up of sawdust, dirt or similar between sections giving increased reliability and reduced maintenance
Telescopic Boom Cylinder Situated Underneath Main Boom

The telescopic cylinder is protected under the boom and not exposed on top hence not subject to impact of falling objects and damage from collision
Tool Trays in Basket
Power Outlet in Basket
Hatch for easy cleaning

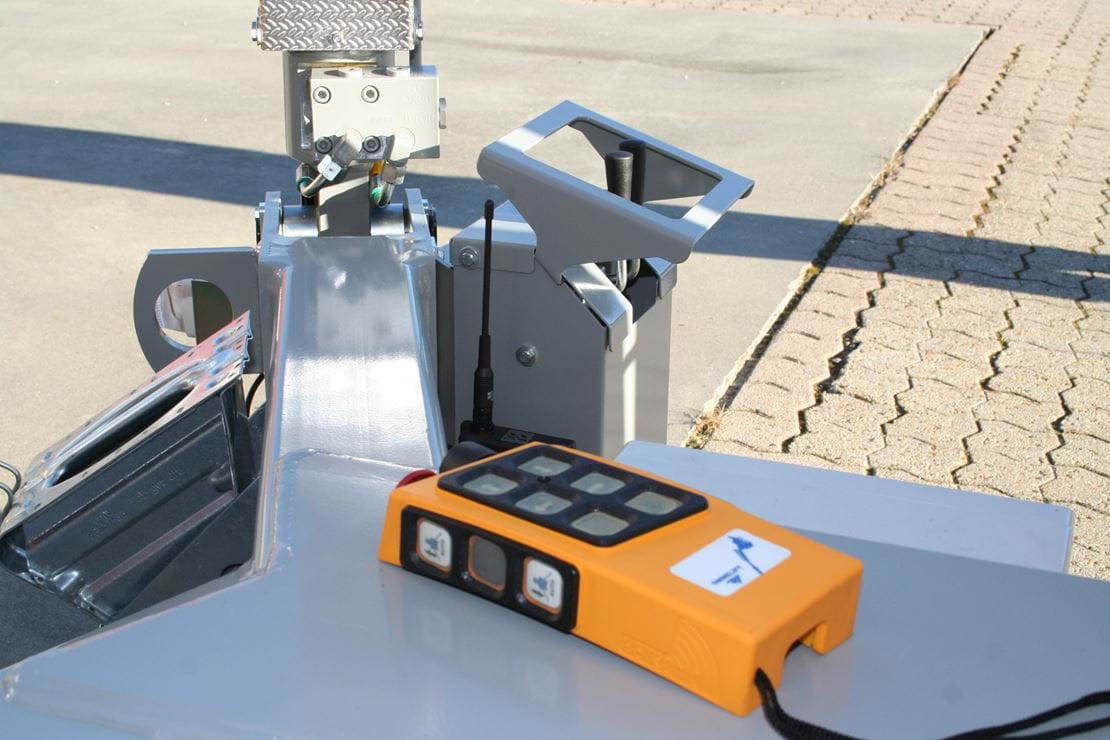

Drive with Radio Control from ground

O4b The lift can be equipped with Drive with Radio Control from ground making the operation of the lift easier and more precise and user-friendly. Driving with radio control the user can move around the lift when driving it, making it possible to spot potential obstacles.

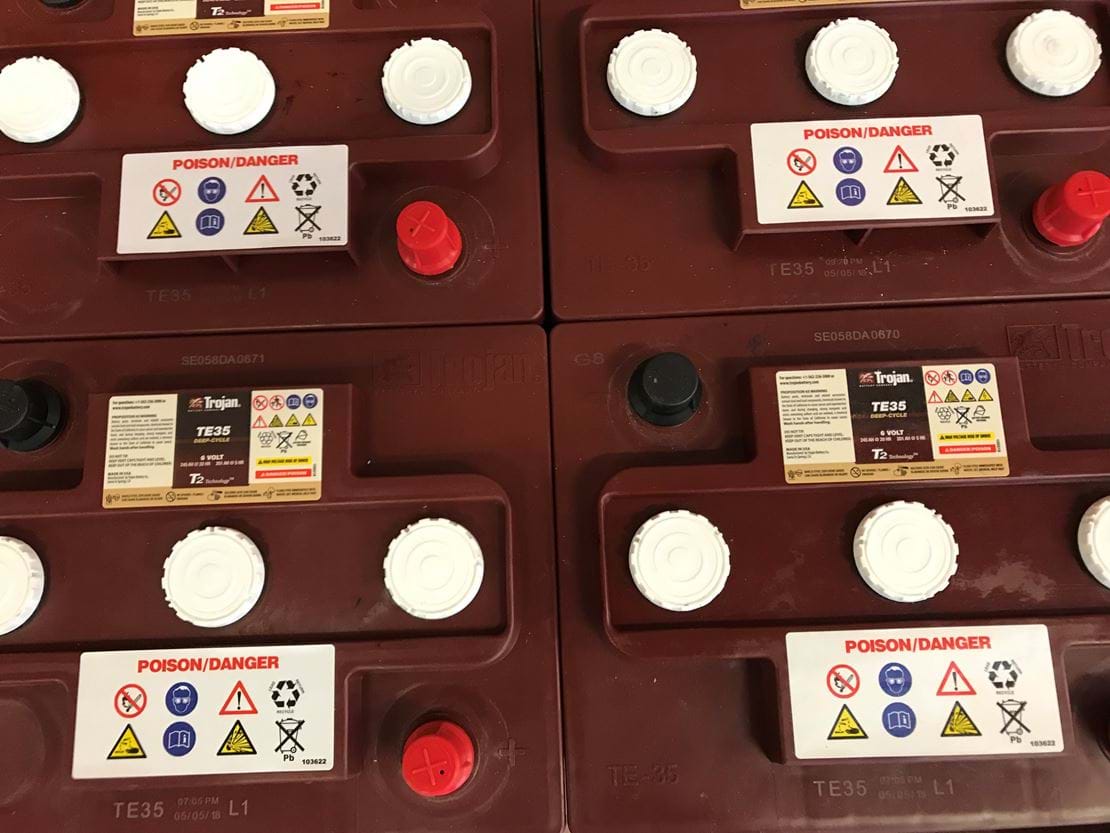

Double Battery Capacity

O7a 4 x 6V 200Ah/5h
Double Charger System with Boost Effect (230V only)

O10 When connected to 230V mains, the 2-charger system provides unlimited lift operation and re-charge of battery pack simultaneously.

Boost effect: boosts output and gives powerful assistance to lift operation and battery re-charge.

A second charger can be fitted on most existing units.

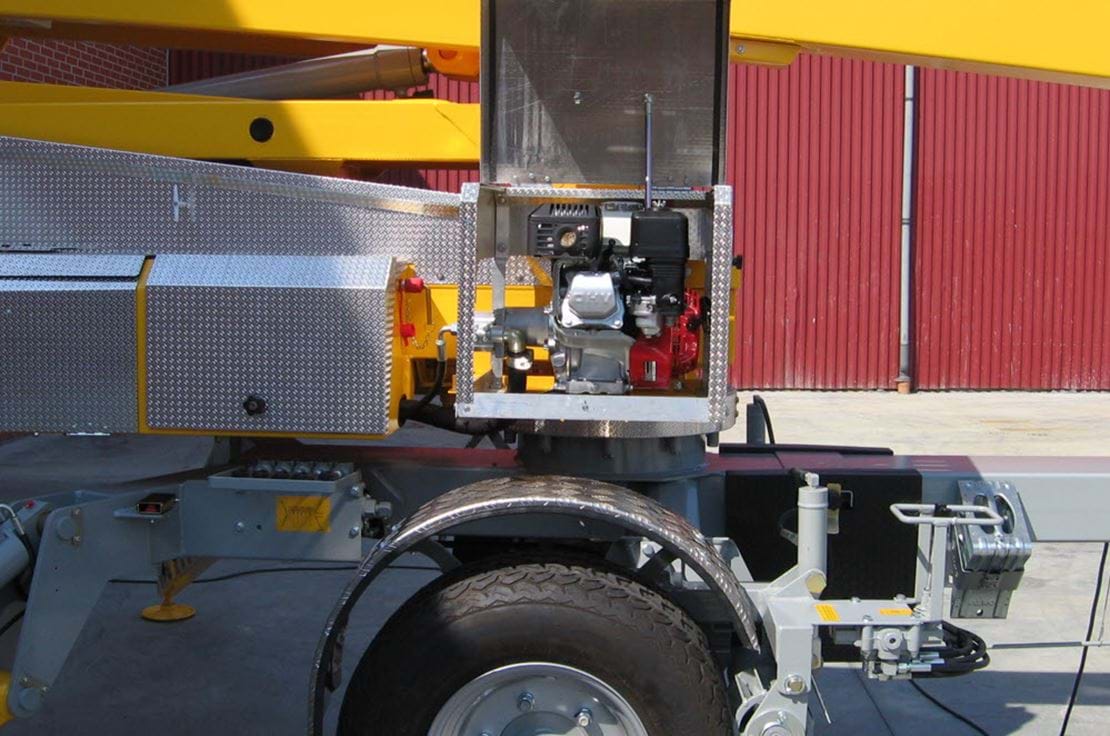

Petrol engine with oil pump

O12(e,f) The lift can be equipped with a petrol engine for alternative continuous operation. On specific engine types start and stop of the engine can also take place from the basket.

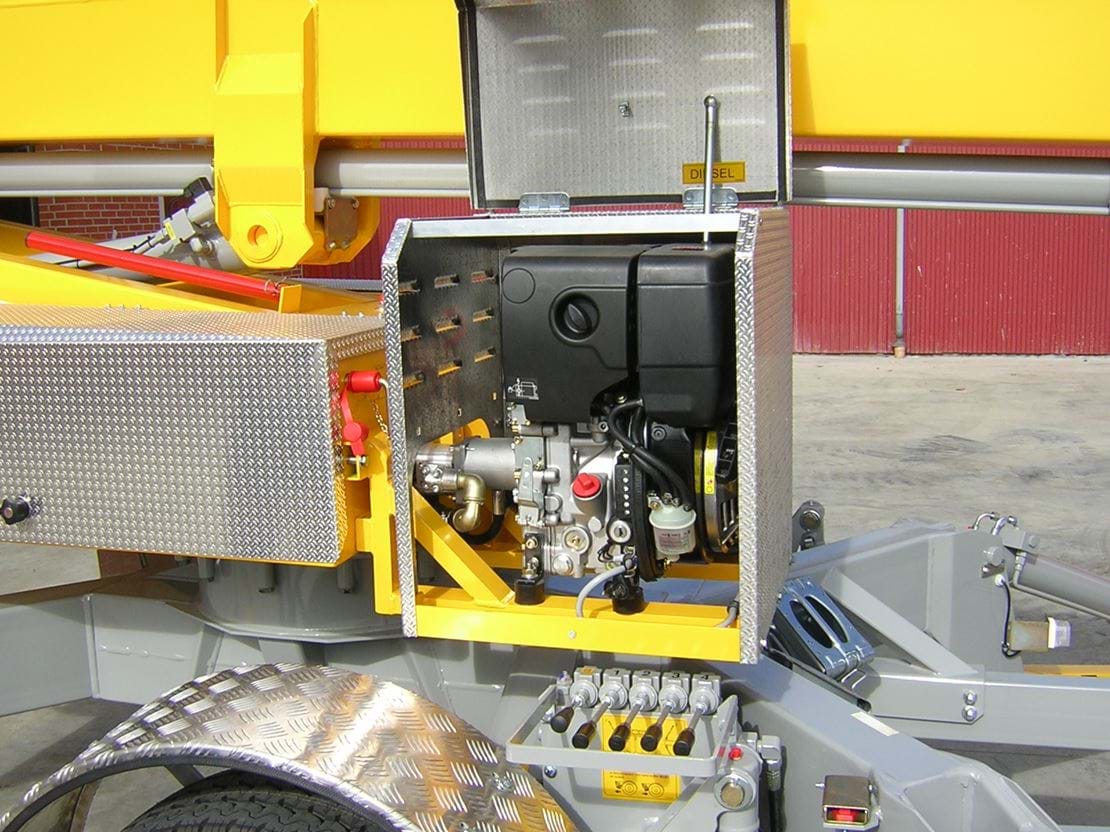

Diesel engine with oil pump

O12(g,h) The lift can be equipped with a diesel engine for alternative continuous operation. On specific engine types start and stop of the engine can also take place from the basket.
Work Light in Basket

O16
Special Colour RAL

O22 For an additional price the lift can according to agreement be painted in other RAL-colours.

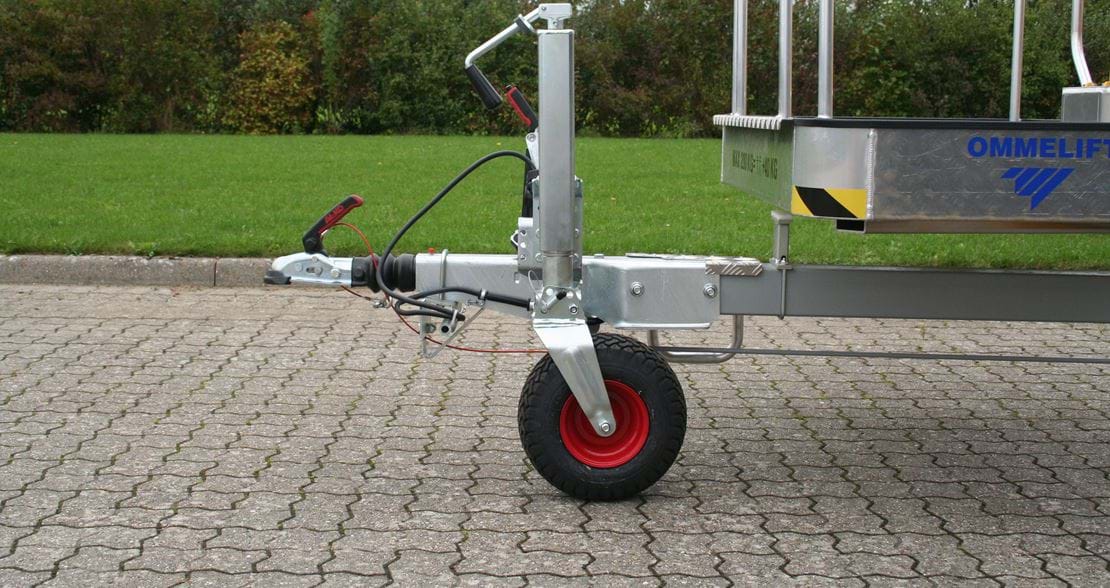

Big and Robust, Integrated Nose Wheel

O24b The size of the integrated robust and compact nose wheel makes driving the propulsion of the lift easier, securing more precise drive through narrow passages and around obstacles. In addition, the wheel will be better suited to drive on soft and loose grounds.
Plates for stabilizers

O29 For lift set up on soft ground OMMELIFT offers 4 pcs. supporting rubber plates. Holders for placing the plates on the lift follow together with the plates. The dimensions of the plates are 400x400 mm

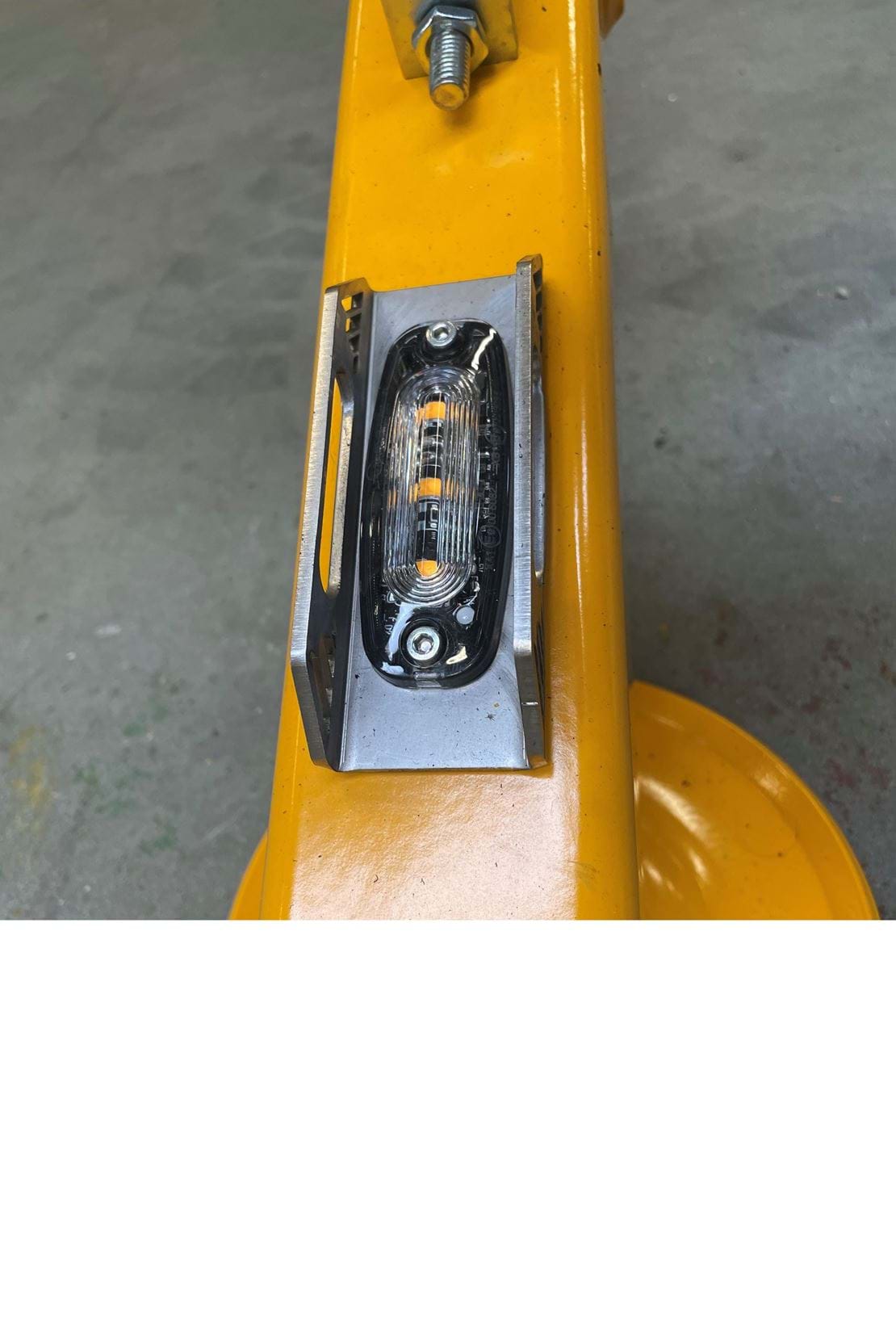

Flashing Beacons on Stabilizers

O39 The lift can be supplied with flash lights on the four stabilizers. If further warning is requested, a flash light can also be mounted on the rear edge of the telescopic boom.
Battery discharge indicator and time counter on electric motor

O57 Battery discharge indicator and hour meter on elec. motor
