Battery/Diesel Hybrid Power

Travel long distances on engine power and use battery power indoor or where quiet or no fumes operation is required. Optimum versatility and unrestricted operating periods with a true hybrid system. Battery power eliminates the well-known ‘voltage drop’ issue, which can significantly impede the operation of a mains-powered machine. Battery power provides faster lift operation and self-drive without inconvenient trailing connection to mains. Moreover, power cuts or local voltage fluctuations do not have an influence on a battery powered lift performance

The True Hybrid System (not bi-energy only)

A true hybrid means optimal power source utilization. The batteries are automatically re-charged when the engine is on. Engine stop accommodates automatic change from engine to battery power and vice versa. Furthermore, continuous recharge of the battery pack is also possible with an on-board charger during lift operation. The charger does not disconnect when the lift is in use ((Double battery capacity 2x(4x6V) 400Ah/5h) included)

The Stick Boom Advantage

The telescopic boom is ideal for indoor use in malls or the like as there is no knuckle hence tail-swing to inflict damage on decor, lighting, information boards etc., typically hanging inside a shopping centre or an atrium. It is also perfect for maintenance jobs on building’s facades in city centres which many times have a similar environment. The straight stick can hit the job directly and exempts the operator from being uneasy when rotating the lift

Stabilizer Indicators Inform Safe Set-up

Sensors on stabilizers and pal locks with separate L.E.D indicators and an audible alarm provide safe deployment.

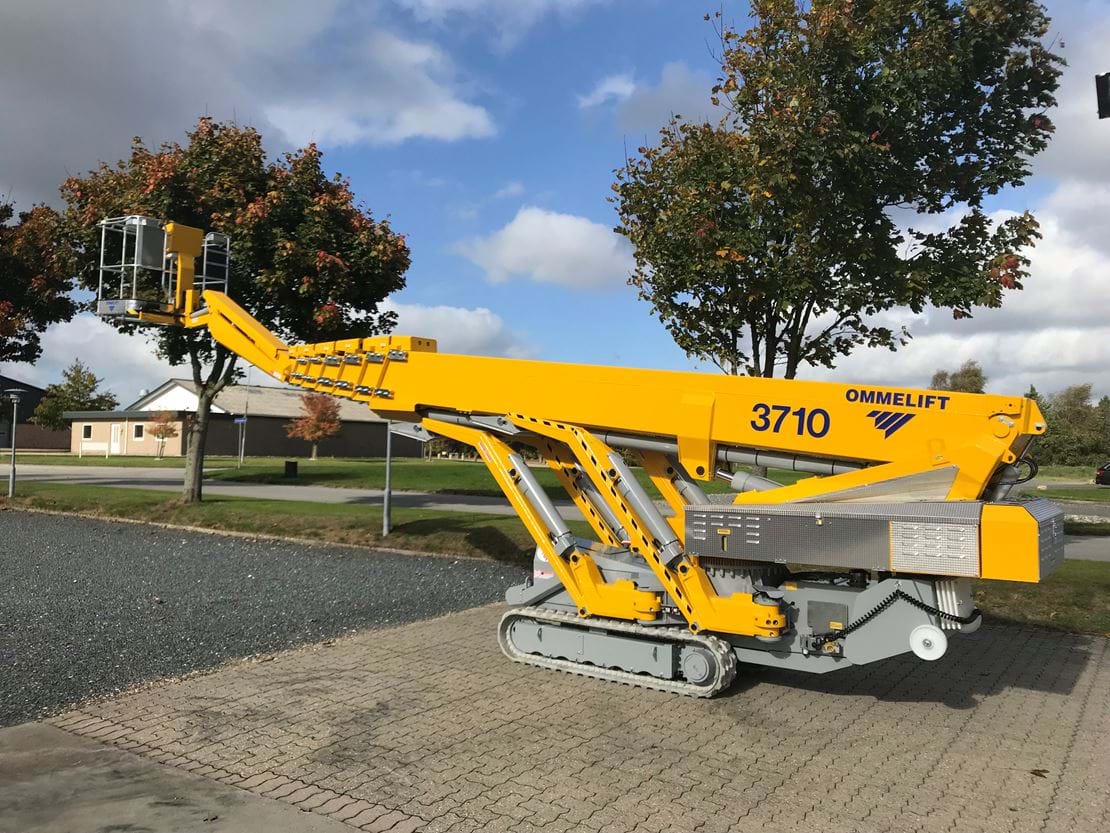

Ability to Lift the Boom and the Jib While Travelling

This allows the operator to clear obstacles when driving and make a clean approach to an uphill/downhill slope without grounding

Flush mounted basket on jib

No bulky fixture underneath the basket which can inflict damage on buildings/rooftops or interior decoration

Detachable Basket with Casters

Cuts overall length and increases transit compactness. Casters on basket for easy handling.

Telescopic Sections on Rollers

No slide pad friction in telescopic movements. Same operation speed with full basket load in all positions. Brushes on entrances prevent sprigs, twigs or other fragments to enter sections

Large and Grease Free Steel Boom Sections

Grease-free sections minimize build-up of sawdust, dirt or similar between sections giving increased reliability and reduced maintenance

Telescopic Boom Cylinder Situated Underneath Main Boom

The telescopic cylinder is protected under the boom and not exposed on top hence not subject to impact of falling objects and damage from collision

Permanently Fixed, Large Bearing-Area Stabilizer Foot Plates

For fast, safe set-up and extra stability even when separate spreader pads are not utilized

Sliding Hinged with Purpose Designed Anti-Scratch Boards

Reduces friction on vulnerable surfaces and furnishes a smooth set-up on e.g. marble or similar

Robustly Built

Extensively Shielded

Tool Trays in Basket

Power Outlet in Basket

Hatch for easy cleaning
