2650 iRX-46kV

Insulated tracked platform Category C 46kV
ANSI A92.2 compliant
3 boom insulation areas
Robust and powerful
Heavy duty shield package
Simultaneous boom functions
True Hybrid

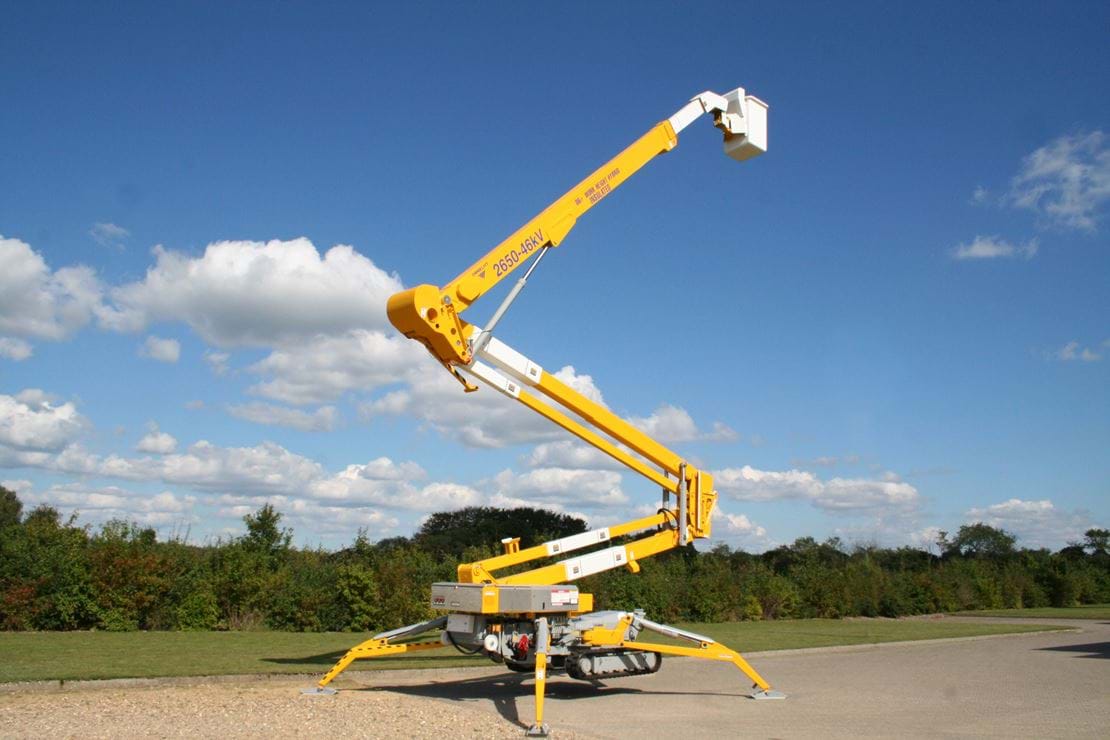

The insulated tracked platform 2650 iRX Category C 46kV, is designed for working close to power lines. All booms are insulated with Waco fibre glass sections which enables safe and manoeuvrable work. Type 2650 iRX is ANSI A92.2 compliant.

Industry Leader

The insulated tracked platform has a working height of 26.5m (ft. 86”) and an unrestricted outreach of 12.2m (ft. 40’1”). A dual parallelogram articulating riser gives 13m (ft. 42'7”) up-and-over free clearance and provides vertical wall tracking. With the telescopic sections on rollers there is no slide pad friction in telescopic movements, which ensures same operation speed with full basket load in all positions. In addition, the basket rotates 180°giving greater access during jobs.

True Hybrid

The 2650 iRX standard version is a true diesel/battery hybrid with engine generated re-charge of the battery pack. Battery power means no noise and no fumes.

Robust and powerful

The OMMELIFT 2650 iRX-46kV has a powerful off-road driving capability and a heavy-duty shield package. The stabilizers allow the machine to be set-up on uneven levels up to 40% (21.8°). Simple and intuitive, multi-function lift operation from the radio controller make operator instruction easy and work quicker.

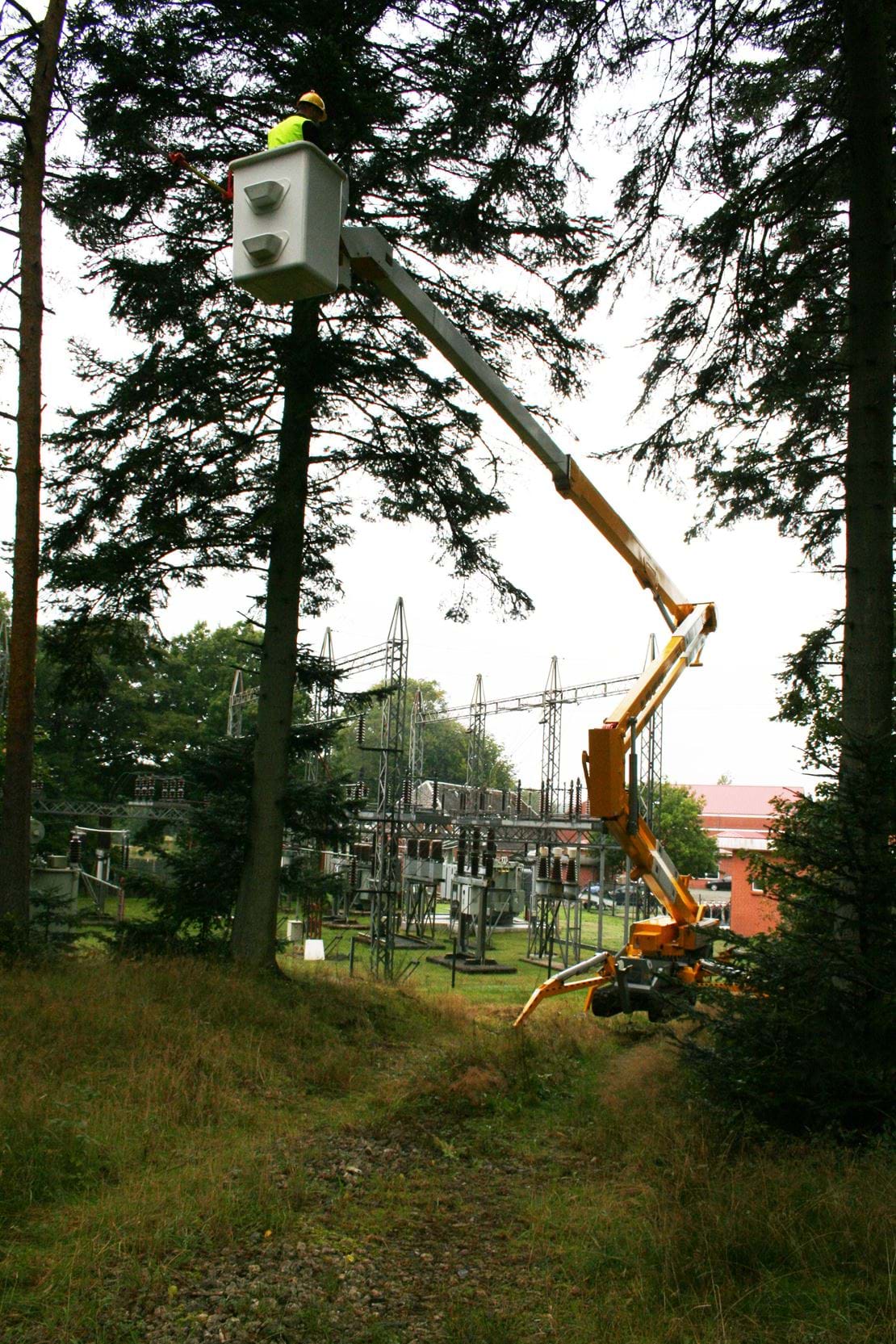

Safe work close to power lines

The insulated 2650 iRX is a tracked platform specifically designed and build to meet the needs of professionals in the Tree Work business, who has to work safely in close distance to power lines.

Contact form

In order to respond to your request we need your contact information. Please complete the fields below.

Thank you for your request!
We appreciate you contacting us about our ommelifts. One of our colleagues will get back to you shortly. Have a great day!

Name: *

Surname: *

Company: *

Phone: *

E-mail: *

Address: *

City: *

Zip code: *

Website:

Message: *

Consent for storing submitted data *

Yes, I give permission to store and process my data
No, I don't give consent to storing my data

Type

2650 iRXB Battery

2650 iRXD Diesel

2650 iRXBD Hybrid

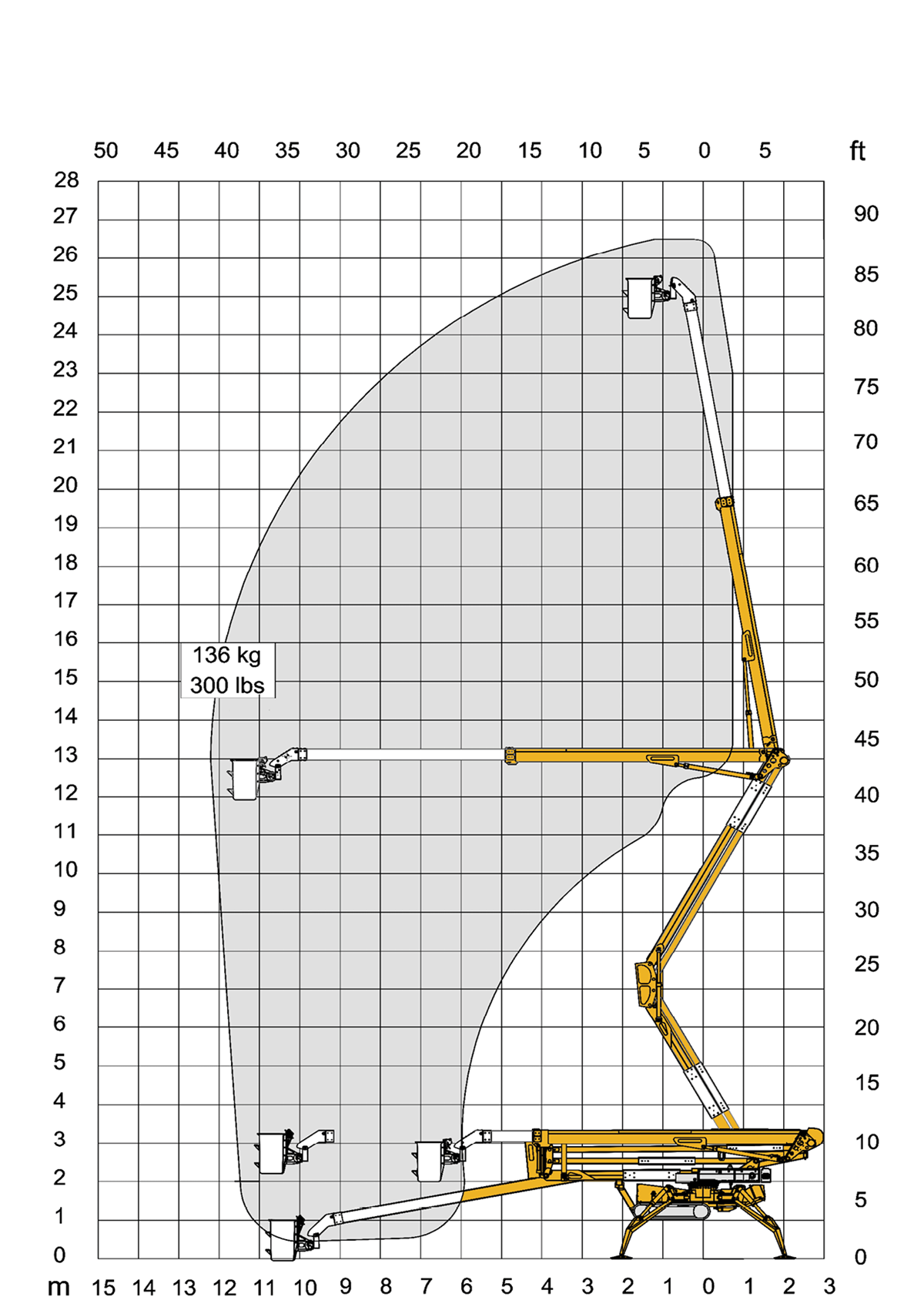

Max. working height

26.5 m 86'0"

Max. outreach

12.2 m 40’1

Max. basket load

136 kg 300 lbs

Basket size

0.80 x 0.65 m 2'7" x 2'2"

Basket rotation ±

90° 90°

Turret rotation ±

355° 355°

Travelling length

10.24 m 33'7"

Travelling height

2.42 m 7’11”

Travelling width

1.50/1.10 m 4‘11“ - 3’8”

Operational width

5.32 / 4.59 m 17’5” / 15’1”

Battery

24 V 400 Ah/5h 24 V 400 Ah/5h

- -

24 V 200 Ah/5h 24 V 200 Ah/5h

Charger

24 V 30 A 24 V 30 A

- -

24 V 30 A 24 V 30 A

Diesel engine

- -

18.5kW/24.8hp 18.5kW/24.8hp

Generator

- -

24 V 22 A 24 V 22 A

Total weight

6075 kg 13394 lbf

Gradeability, max. across slope up to

35% / 19.3° 35% / 19.3°

Gradeability, max. up and down slope

35% / 19.3° 35% / 19.3°

Deployment ability on slopes up to

40% / 21,8° 40% / 21,8°

Metric US

Brochure download

Download

ANSI/SAIA A92.2 Compliant
Battery/Diesel Hybrid Power

Travel long distances on engine power and use battery power indoor or where quiet or no fumes operation is required. Optimum versatility and unrestricted operating periods with a true hybrid system. Battery power eliminates the well-known ‘voltage drop’ issue, which can significantly impede the operation of a mains-powered machine. Battery power provides faster lift operation and self-drive without inconvenient trailing connection to mains. Moreover, power cuts or local voltage fluctuations do not have an influence on a battery powered lift performance
The True Hybrid System (not bi-energy only)

A true hybrid means optimal power source utilization. The batteries are automatically re-charged when the engine is on. Engine stop accommodates automatic change from engine to battery power and vice versa. Furthermore, continuous recharge of the battery pack is also possible with an on-board charger during lift operation. The charger does not disconnect when the lift is in use
Stabilizer Indicators Inform Safe Set-up

Sensors on stabilizers and pal locks with separate L.E.D indicators and an audible alarm provide safe deployment.

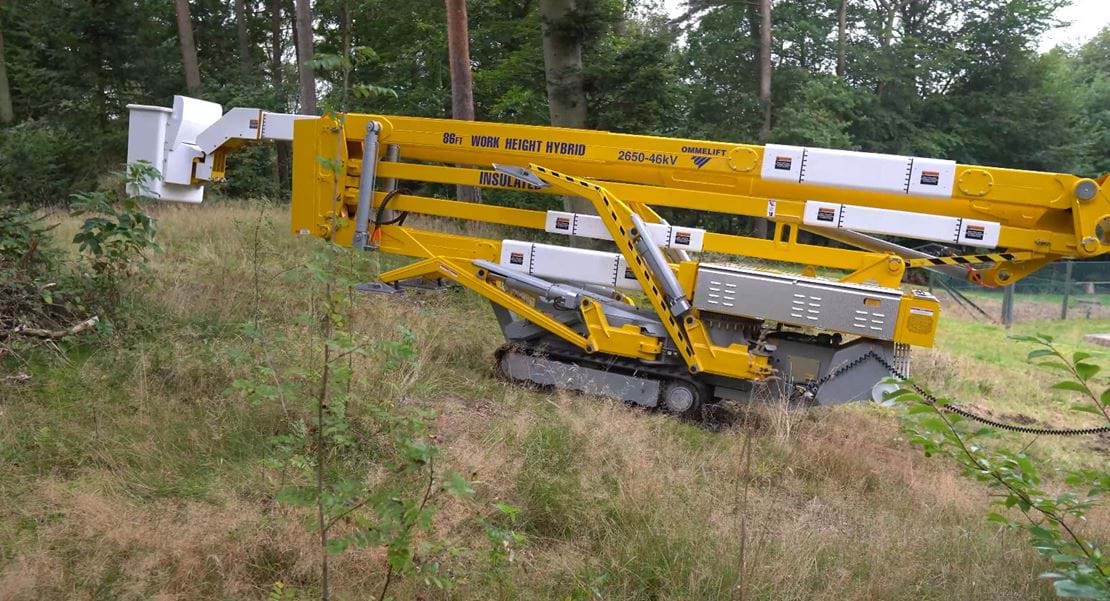

3 Boom Insulated Areas

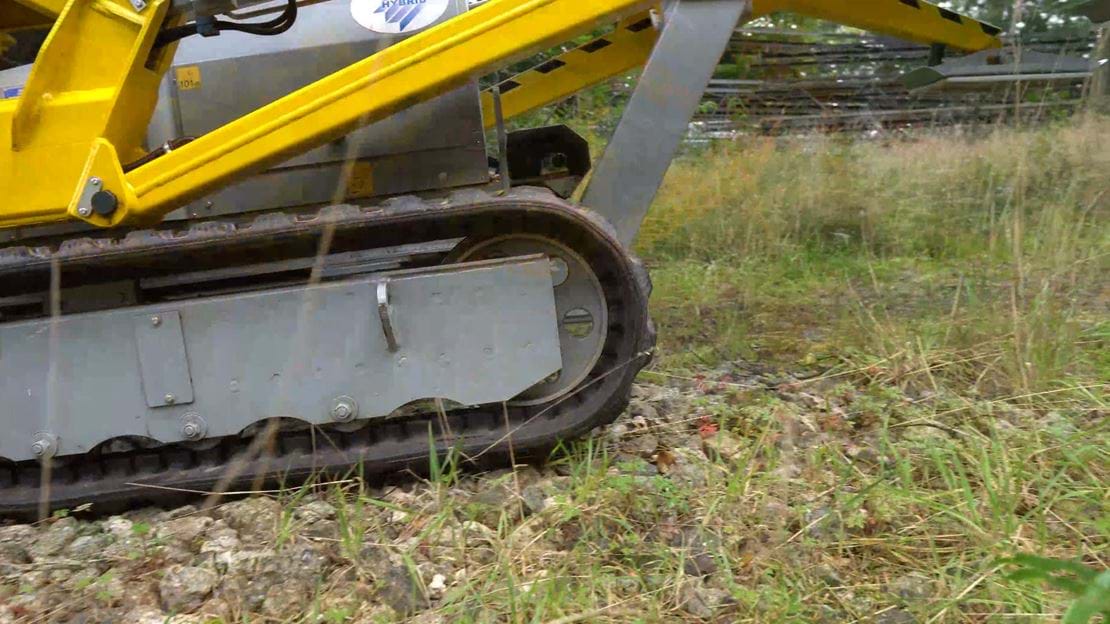

Powerful Off-Road Driving Capability

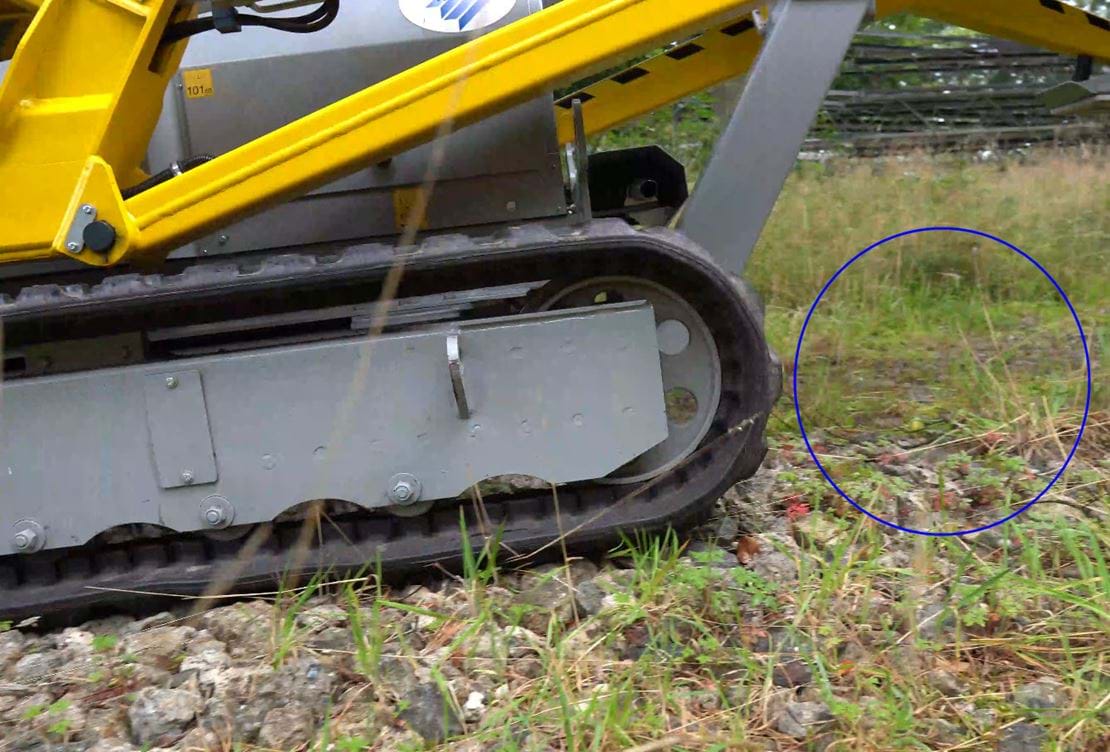

Clean Approach

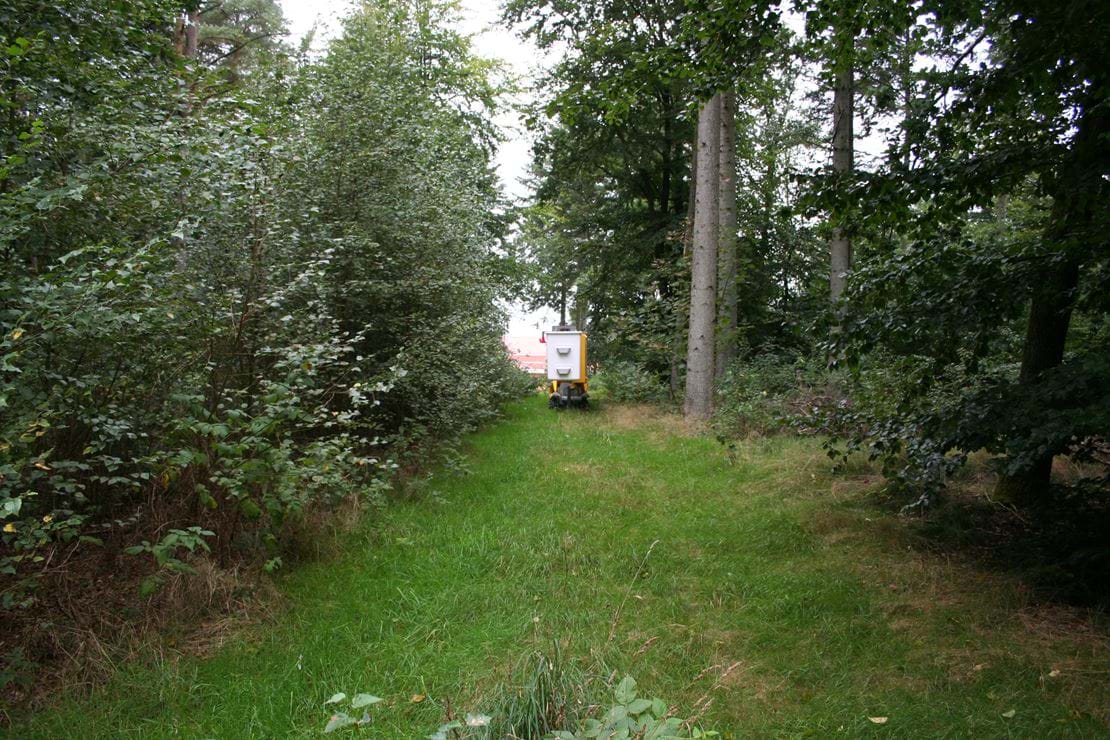

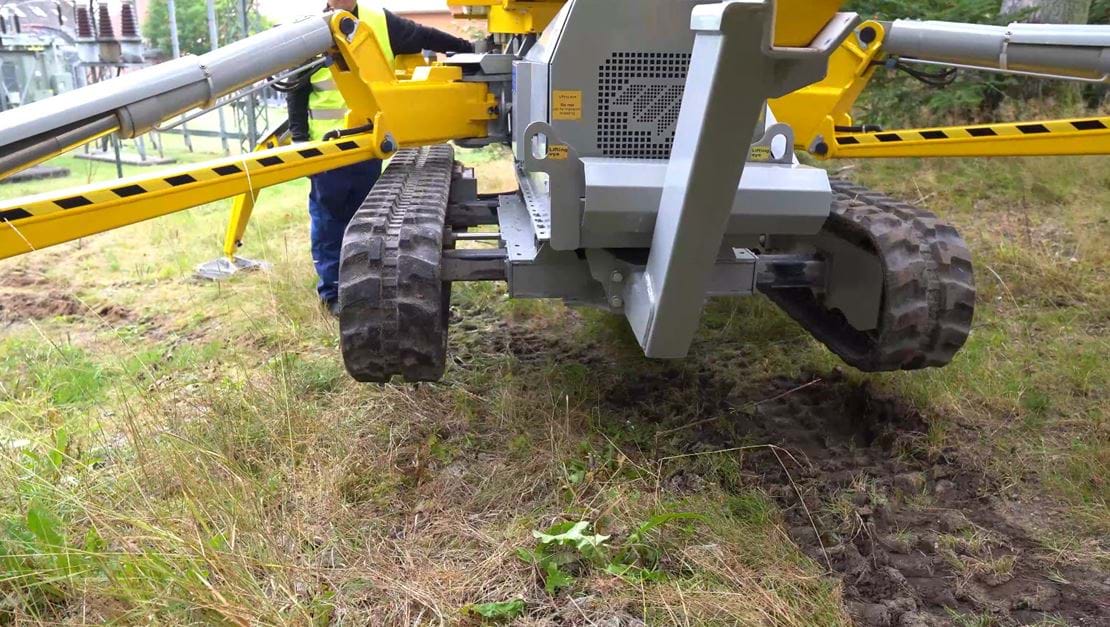

Variable Width Undercarriage

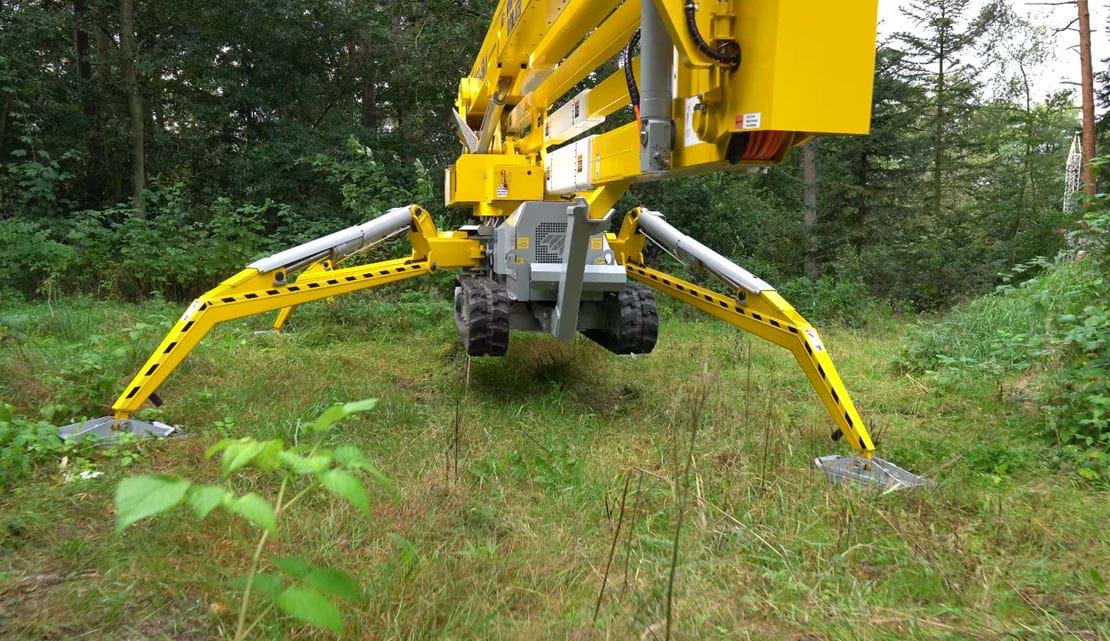

Variable Outrigger Positions

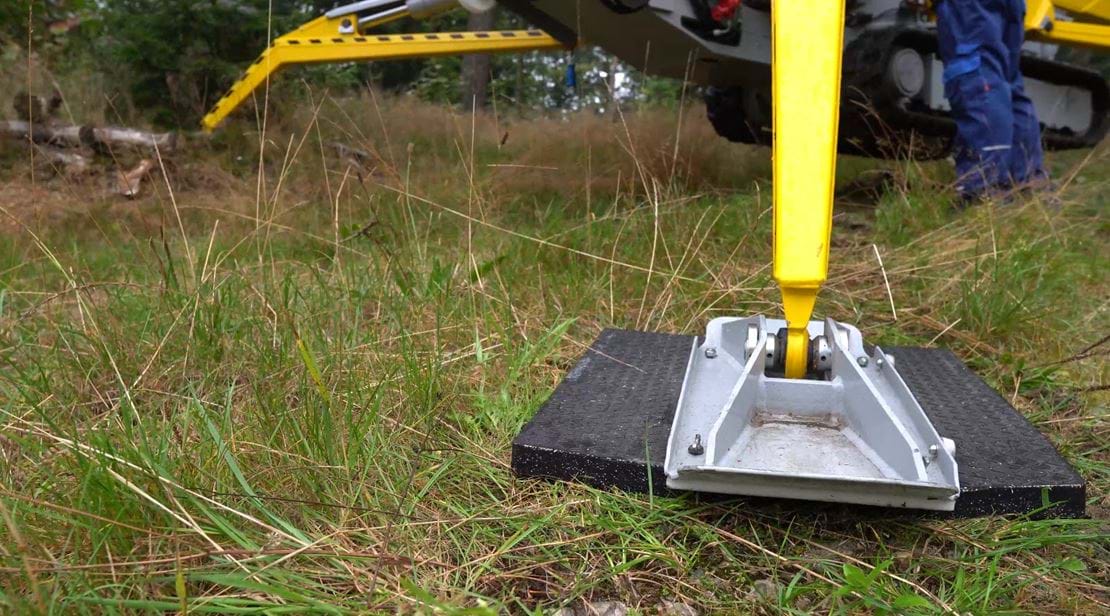

Permanently Fixed, Large Bearing-Area Stabilizer Foot Plates

For fast, safe set-up and extra stability even when separate spreader pads are not utilized

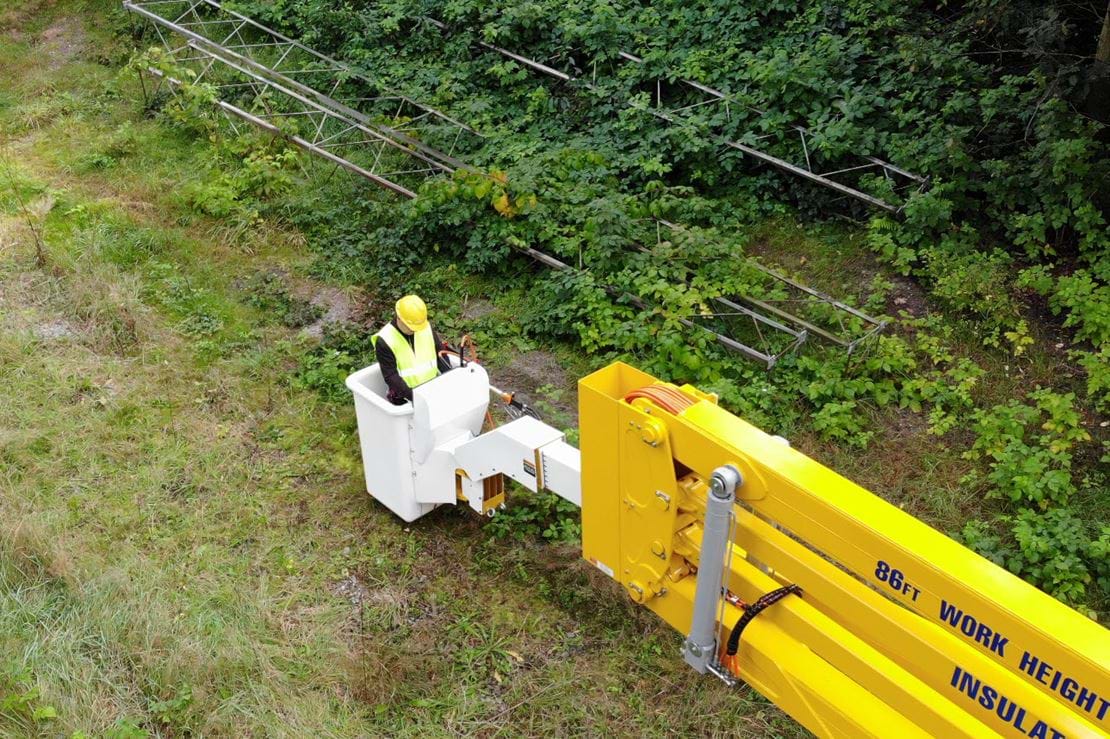

Easy Basket Access

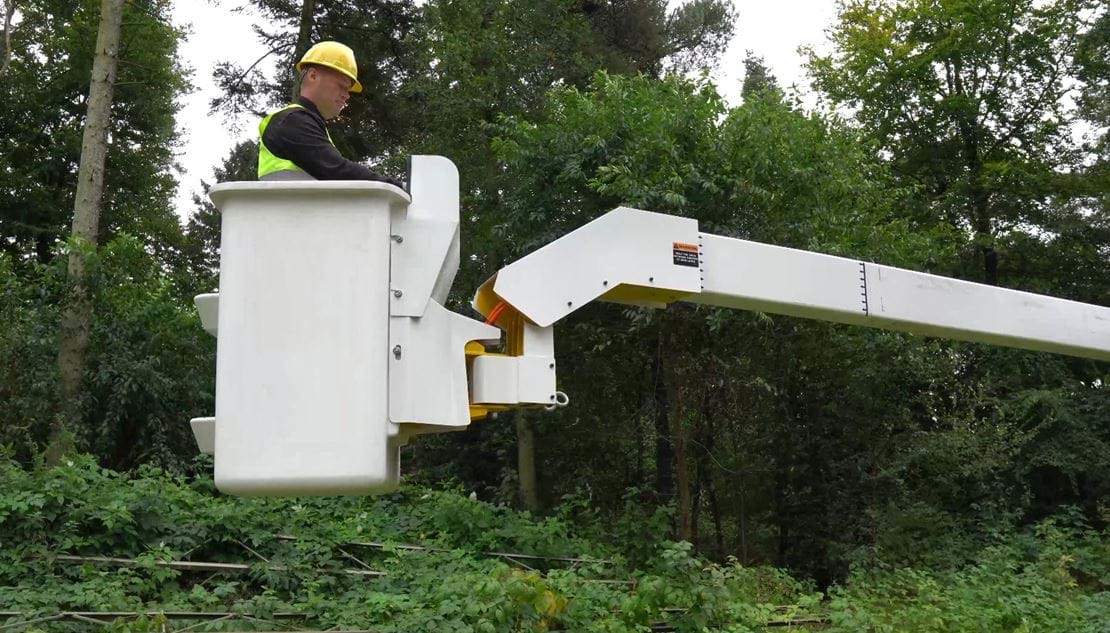

2 x 90° Basket Rotation

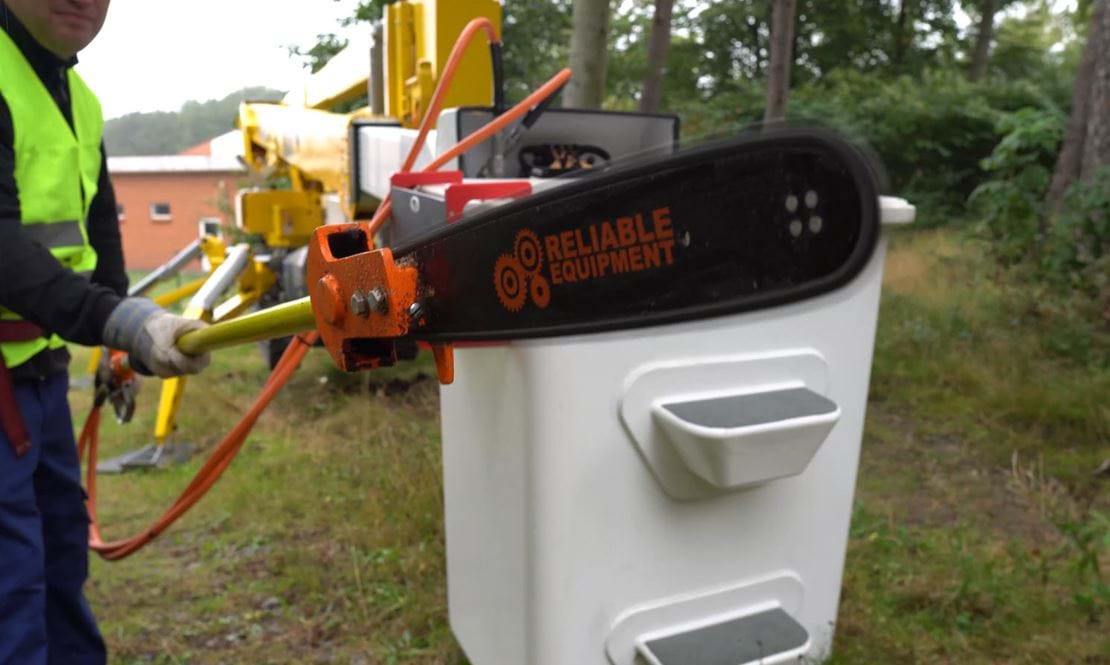

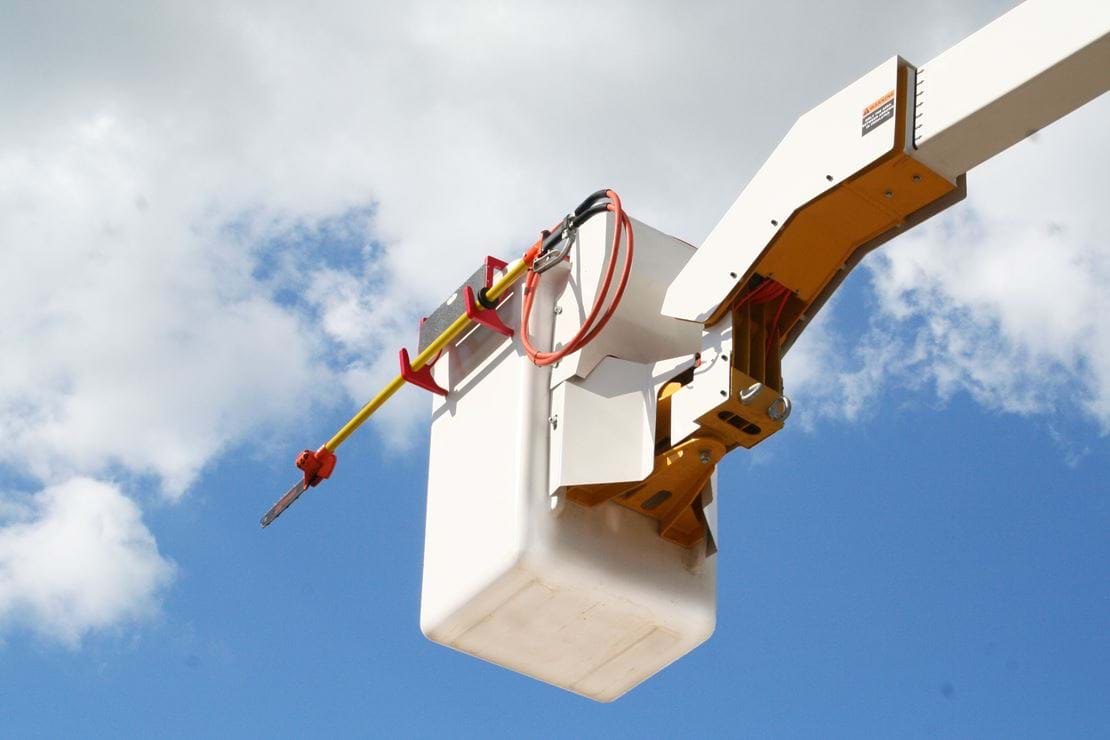

Hydraulic Circuit for Saw Hookup

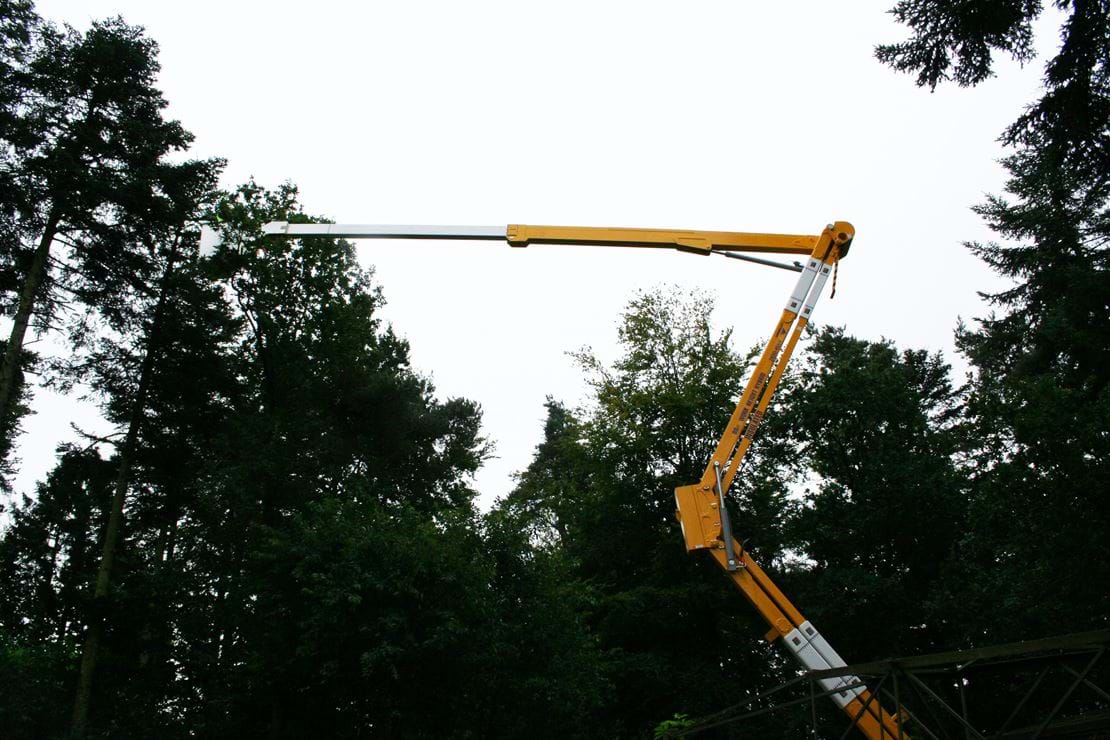

Extensive Horizontal Reach

The articulating riser gives more than 13 m (ft 42’7'') up-and-over free clearance with an up to 12.2 m (ft 40’1'') side reach.

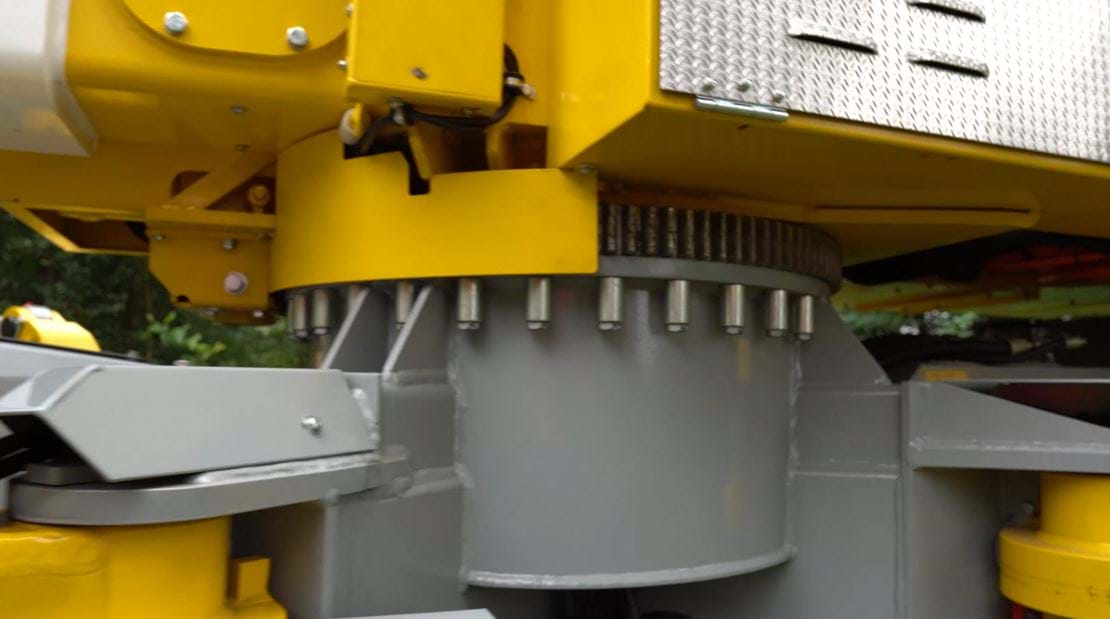

Robustly Built

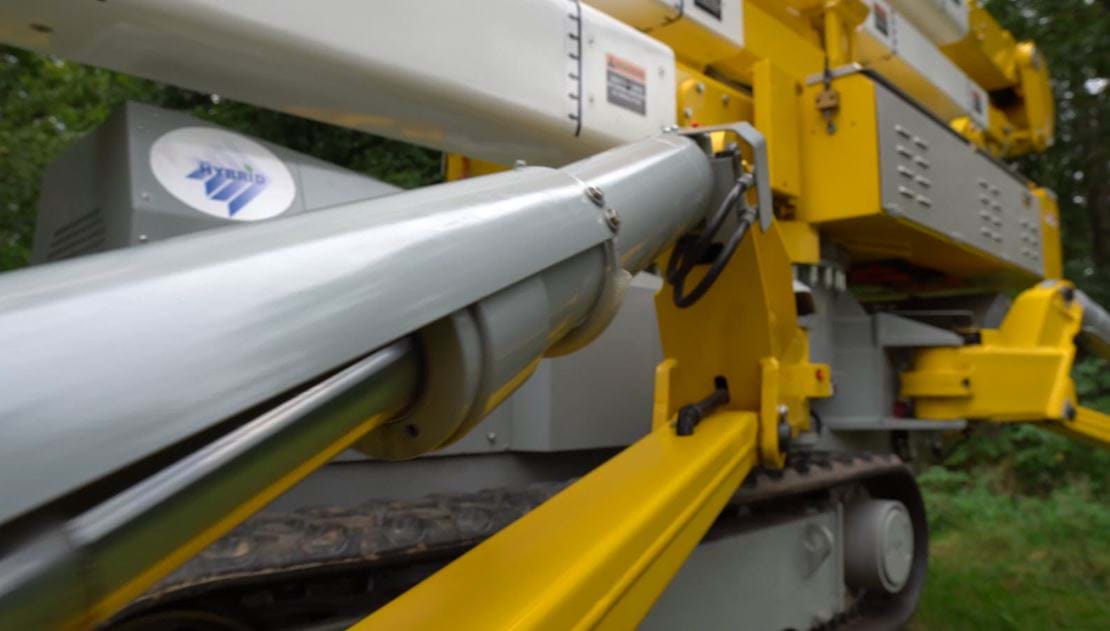

Heavy Duty Shield Package

Automatic Levelling

O45
Wireless Drive

042 The lift can be equipped with Wireless Drive
Wireless Drive and Automatic Levelling

O45b Wireless Drive with automatic levelling.
Non-Marking Tracks

O26
Flashing Beacons on Stabilizers

O39 The lift can be supplied with flash lights on the four stabilizers. If further warning is requested, a flash light can also be mounted on the rear edge of the telescopic boom.
Battery discharge indicator and time counter on electric motor

O57 Battery discharge indicator and hour meter on elec. motor
Special Colour RAL

O22 For an additional price the lift can according to agreement be painted in other RAL-colours.
